Balancing Head Boards Overhead Line Construction Tools 130KN For Four Bundle Conductors

Name: Balancing Head Boards Overhead Line Construction Tools 130KN For Four Bundle Conductors
Brand: SHENGHONG
Price: 1 USD

Best Balancing Head Boards Overhead Line Construction Tools 130KN For Four Bundle Conductors wholesale

Brand Name : SHENGHONG

Model Number : SZ4A-13

Certification : ISO

Place of Origin : MADE IN CHINA

MOQ : 1pc

Price : negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5pcs/day

Delivery Time : 15 days after payment

Packaging Details : export package

Name : Balancing Head Board Running Board

Load Capacity : 13T

Applicable stringing block sheave width(mm) : 100

Weight(kg) : 139

Marks : Balance pulley structure

Application : overhead line transmission

Contact Now

Balancing Head Boards Overhead Line Construction Tools 130KN For Four Bundle Conductors

Data Sheet

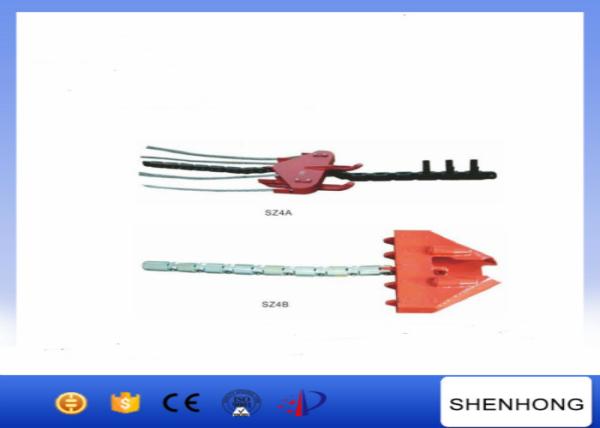

Item No.	Model	Description	Rated Load (KN)	Weight (kg)	Marks
17231	SZ4A-13	Used for 660X100 stringing block	130	96	Balance pulley structure
17232	SZ4B-13	Used for 660X100 stringing block	130	65	Conductors are stringing separately from different bull wheels
17233	SZ4B-18	Used for 822X110 stringing block	180	110
17234	SZ4B-25	Used for 822X110 stringing block	250	110
17238	SZ4C-25	Used for 822X110 stringing block	250	110
17239	SZ4B-32	Used for 1024X125 stringing block	320	125

Application:

It is used for stringing 4 bundled conductors, to connect the pilot wire rope with conductors.

The vertical heavy links hold running board in horizontal position for correct entrance into stringing blocks.

The balance pulley type is normally used for 2 bundled conductors which are pulled from same bull wheels of tensioner.

Balancing Head Boards Overhead Line Construction Tools 130KN For Four Bundle Conductors

Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
